You will need these tools & supplies to follow the Canon 50D infrared conversion tutorial:
- Our custom glass infrared filter to replace the hotmirror
- Soldering iron and desoldering wick or desoldering gun
- Small philips type screwdriver
- Tweezers
- Canned air
- Lens cleaning solution & tissue
- Grounding strap /w current limit resistor
If you prefer not to risk damage to your camera, have us convert it to infrared for you. It would be best to perform the conversion in a well lit area that is as clean and dust free as possible. Wearing a grounding strap will minimize the chance of zapping your camera with static and most likely rendering it dead.
Canon 50D Infrared DIY Conversion Tutorial Step 1
Remove rubber grip.
Canon 50D Infrared DIY Conversion Tutorial Step 2
Remove marked screws.
Canon 50D Infrared DIY Conversion Tutorial Step 3
Remove marked screws.
Canon 50D Infrared DIY Conversion Tutorial Step 4
Peel up rubber grip and remove marked screws.
Canon 50D Infrared DIY Conversion Tutorial Step 5
Gently separate the rear cover from the body and disconnect marked cables.
Canon 50D Infrared DIY Conversion Tutorial Step 6
Remove the I/O cover.
Canon 50D Infrared DIY Conversion Tutorial Step 7
Desolder the noise shield.
Canon 50D Infrared DIY Conversion Tutorial Step 8
Remove the noise shield.
Canon 50D Infrared DIY Conversion Tutorial Step 9
Disconnect marked cables.
Canon 50D Infrared DIY Conversion Tutorial Step 10
Remove marked screws and disconnect the cable marked with a red arrow.
Canon 50D Infrared DIY Conversion Tutorial Step 11
Disconnect marked cable and flip over the PCB.

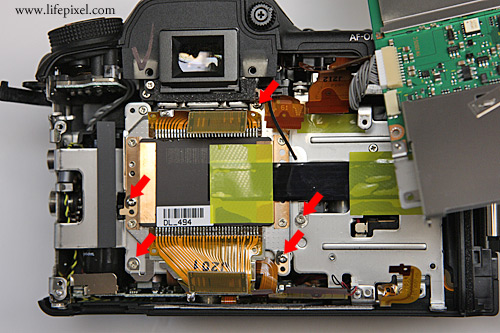

Canon 50D Infrared DIY Conversion Tutorial Step 12
Remove marked screws and flip over the sensor unit.
Canon 50D Infrared DIY Conversion Tutorial Step 13
Disconnect marked cable.
Canon 50D Infrared DIY Conversion Tutorial Step 14
Remove marked screws.
Canon 50D Infrared DIY Conversion Tutorial Step 15
Lift out the grounding form.
Canon 50D Infrared DIY Conversion Tutorial Step 16
Remove the filter retainer.
Canon 50D Infrared DIY Conversion Tutorial Step 17
Remove the dust reduction filter.
Canon 50D Infrared DIY Conversion Tutorial Step 18
Cut the adhesive holding the infrared blocking filter to the frame.
Canon 50D Infrared DIY Conversion Tutorial Step 19
Remove the infrared blocking filter.
Canon 50D Infrared DIY Conversion Tutorial Step 20
Install our infrared replacement filter and follow the tutorial in reverse order starting with step 16 to reassemble your camera.
